Corner Lite Series
Corner Lite Series
FILTER
Critical Dimension
2ft
4ft
6ft
8ft
Mounting Options
Marine Straps
Pendant
Surface
Power Input
UNV 120 - 277 VAC

Corner Lite Series

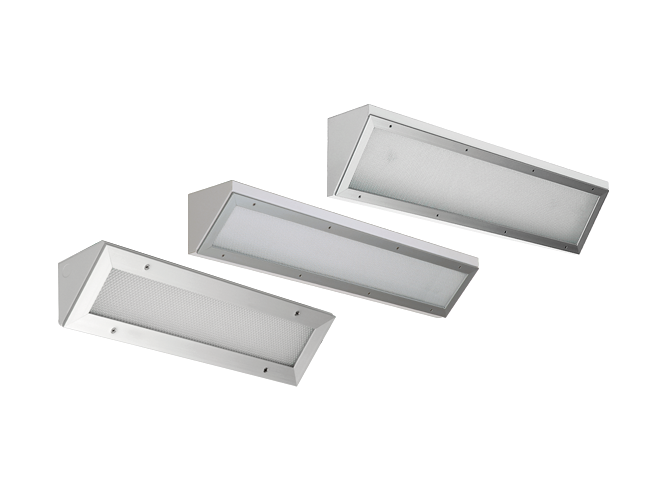

The Corner Lite luminaire features rugged construction and has three variations available. All are ETL/cETL Listed Damp and Cleanroom Locations. The Corner Lite Series is suitable for Cleanroom, Industrial, Commercial, and Transit applications. The downlight from the edges of a room naturally illuminates spaces perfectly. This luminaire is available in lengths up to 8-feet.



• Don’t see the luminaire you need, click here to contact us.


Selections:
K0
Corner Lite Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 4ft
Flat Acrylic Lens
Damp Location
Surface / Pendant / Marine Straps
1400-4728 lm (56W Max)
UNV 120 - 277 VAC
4 1/2"W x 4 1/2"H
Downloads
Spec Sheet Downloads
icon
K0.pdf
IES Downloads
icon
K0_LED.zip
Install Instructions Downloads
icon
K0K7K8ii.pdf
K7
Corner Lite Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 4ft / 6ft / 8ft
Flat Acrylic Lens
Damp Location
Marine Straps / Pendant / Surface
1331-10648 lm (112W Max)
UNV 120 - 277 VAC
8 1/16"W x 8 1/16"H
Downloads
Spec Sheet Downloads
icon
K7.pdf
Install Instructions Downloads
icon
K0K7K8ii.pdf
K8
Corner Lite Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 4ft / 6ft / 8ft
Flat Acrylic Lens
Damp Location
Surface / Marine Straps / Pendant
1800-17360 lm (168W Max)
UNV 120 - 277 VAC
10 9/16"W x 8 1/2"H
Downloads
Spec Sheet Downloads
icon
K8.pdf
IES Downloads
icon
K8_LED.zip
Install Instructions Downloads
icon
K0K7K8ii.pdf
