Aerolux & Minilux Series
Aerolux® & Minilux® Series
FILTER
Critical Dimension
2ft
3ft
4ft
Mounting Options
Cable
HEPA Filter Grid Ceiling
Pendant
Surface
Power Input
UNV 120 - 277 VAC

 Aerolux® & Minilux® Series

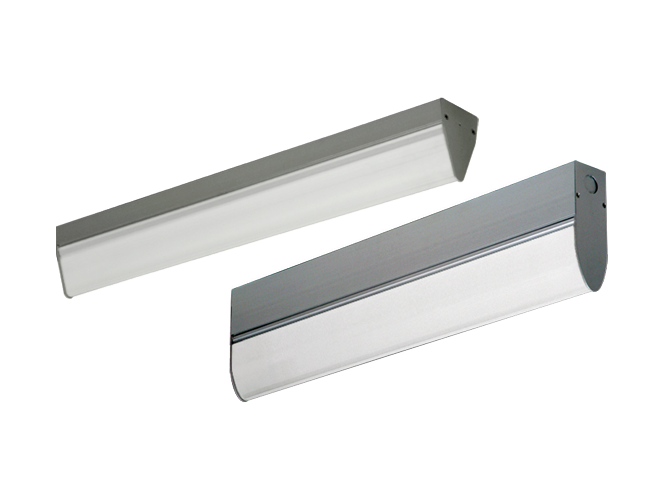

The Aerolux & Minilux were designed as a Cleanroom luminaires with a tapered lens to minimize air turbulence when a vertical laminar flow system is required. They surface mount to the bottom of a 2-inch HEPA filter grid ceiling used in typical Cleanrooms. The light controlled acrylic lens is easily removed for servicing. These luminaires are ETL/cETL Listed Dry Location. Due to their unique design, these luminaires have also been used in Industrial, Commercial, and Architectural settings.



• Don’t see the luminaire you need, click here to contact us.


Selections:
A1

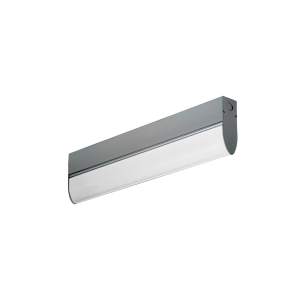

Teardrop Cleanroom AeroLux® Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 3ft / 4ft
Light Control Acrylic Lens
Dry
HEPA Filter Grid Ceiling / Surface / Cable / Pendant
1338-3344 lm (24W Max)
UNV 120 - 277 VAC
2"W x 6"H
Downloads
Spec Sheet Downloads
icon
A1.pdf
IES Downloads
icon
A1_LED.zip
Install Instructions Downloads
icon
A1ii.pdf
icon
A1_InRowii.pdf
A9

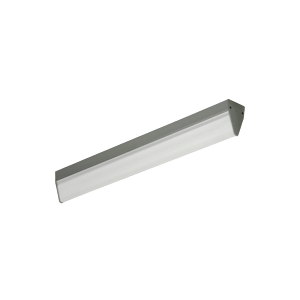

Teardrop Cleanroom MiniLux® Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 3ft / 4ft
Light Control Acrylic Lens
Dry
HEPA Filter Grid Ceiling / Surface / Cable / Pendant
1685-3372 lm (24W Max)
UNV 120 - 277 VAC
2"W x 3"H
Downloads
Spec Sheet Downloads
icon
A9.pdf
IES Downloads
icon
A9_LED.zip
Install Instructions Downloads
icon
A9ii.pdf
icon
A9_InRowii.pdf
